Super Flow/ DTS Powermark 2500 dyno |
|
click on the images to see a larger version in a new window. |
|
|
 |

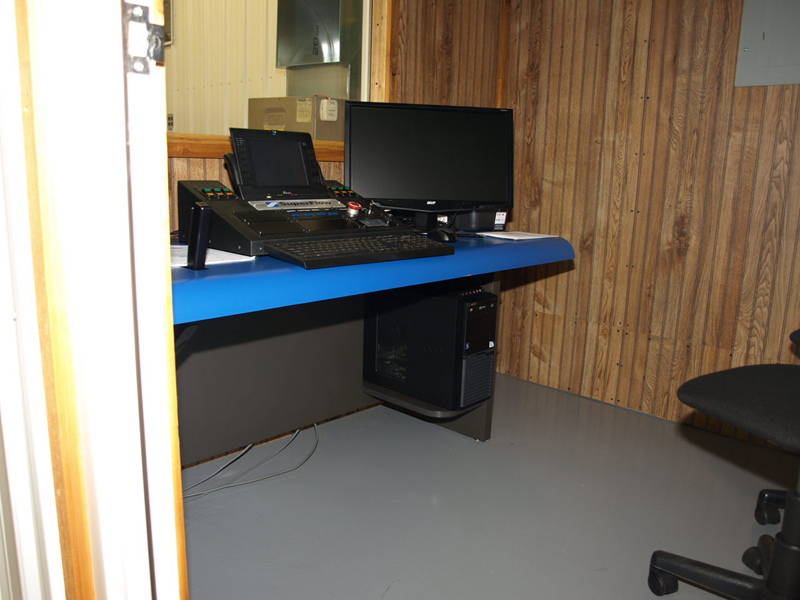

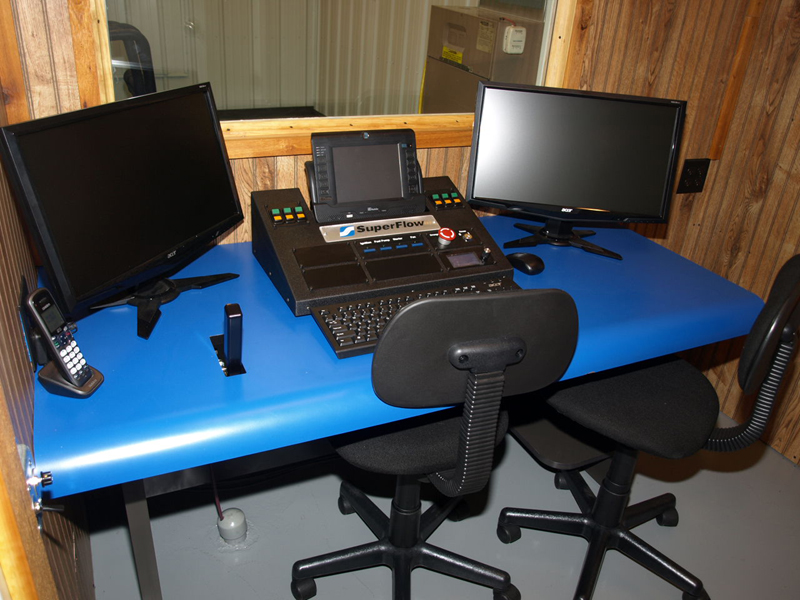

| Console set up and ready for computer. | Computer in place and hooked up. |
 |
 |

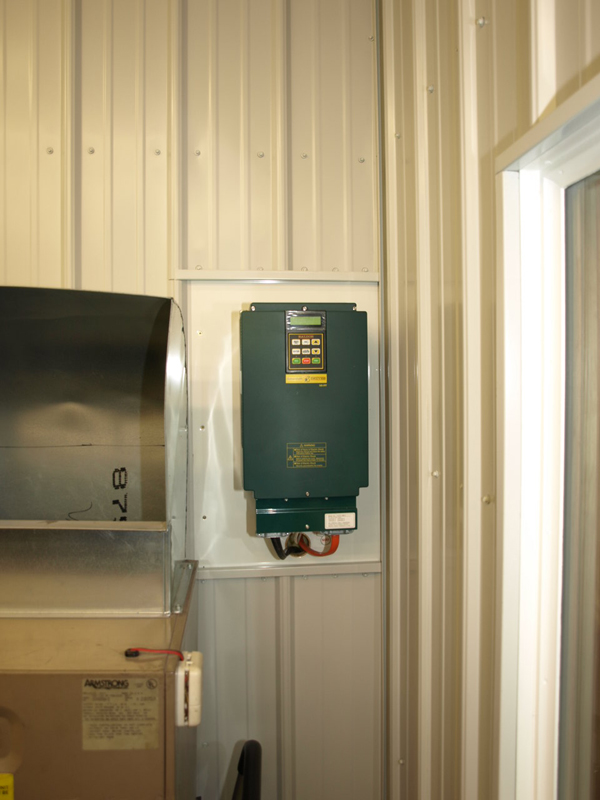

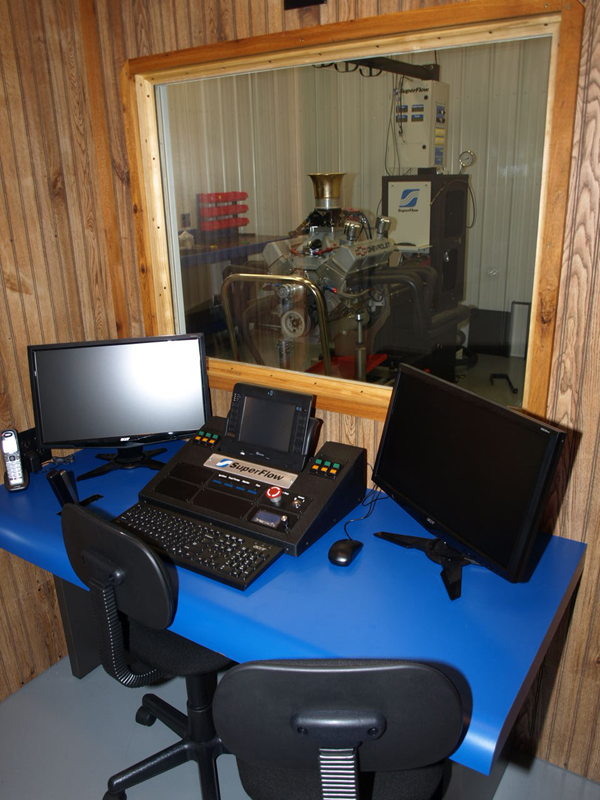

| View of the dyno from inside the control room. | Some of the behind the scenes parts. |
 |
|

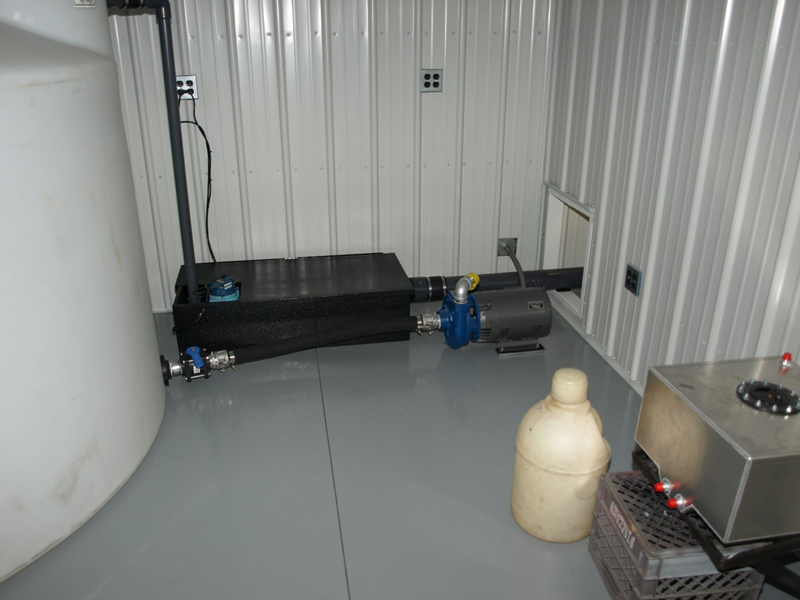

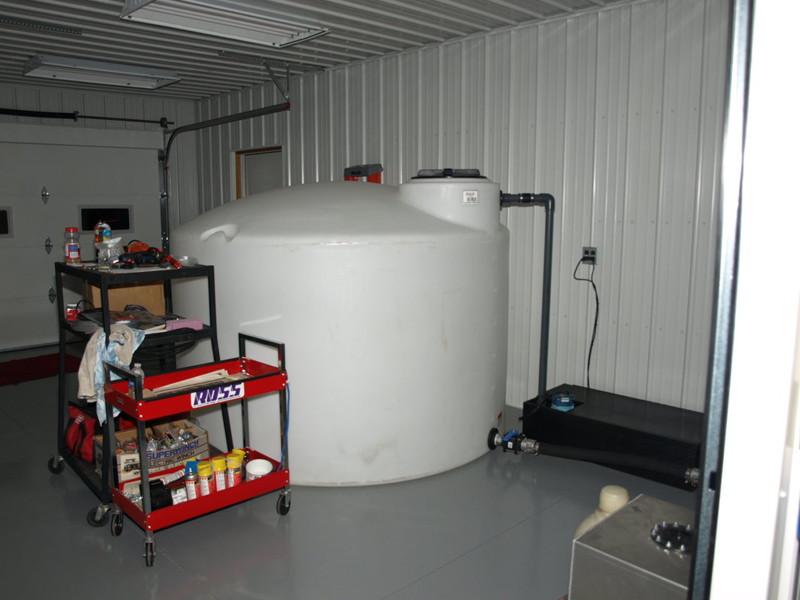

| Water storage for the water brake and cooling the engine. | The pump that supplies it all. Fuel cell needing hooked up. |
 |
 |

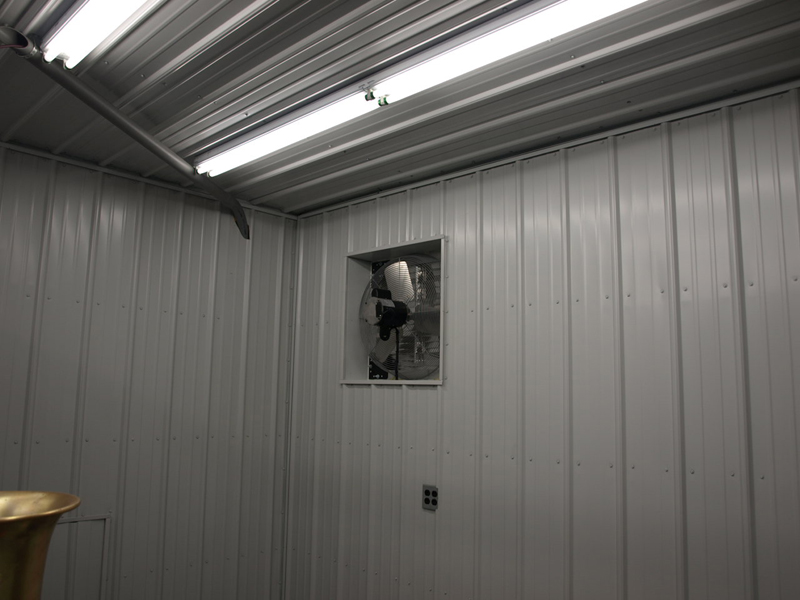

| Large vent fan to remove any fumes from the dyno cell. | Looking towards the control room from the dyno cell. |
 |
 |
| AJ Eilert working on a bracket to support a gauge. | |
 |
 |

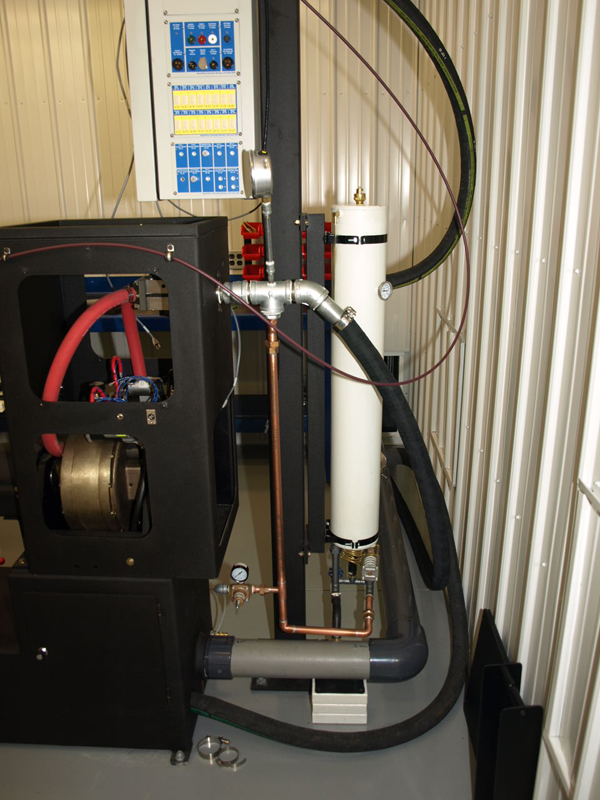

| The plumbing nightmare from the water tank. |
 |
 |

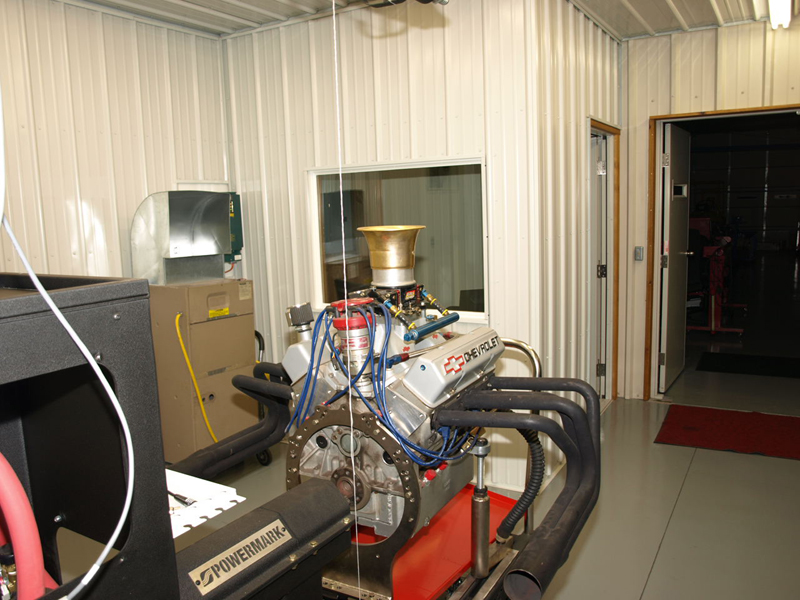

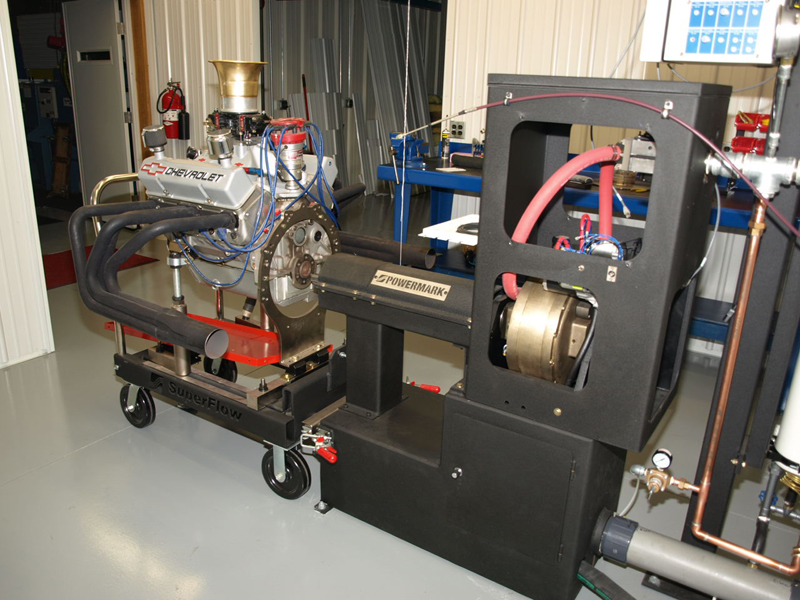

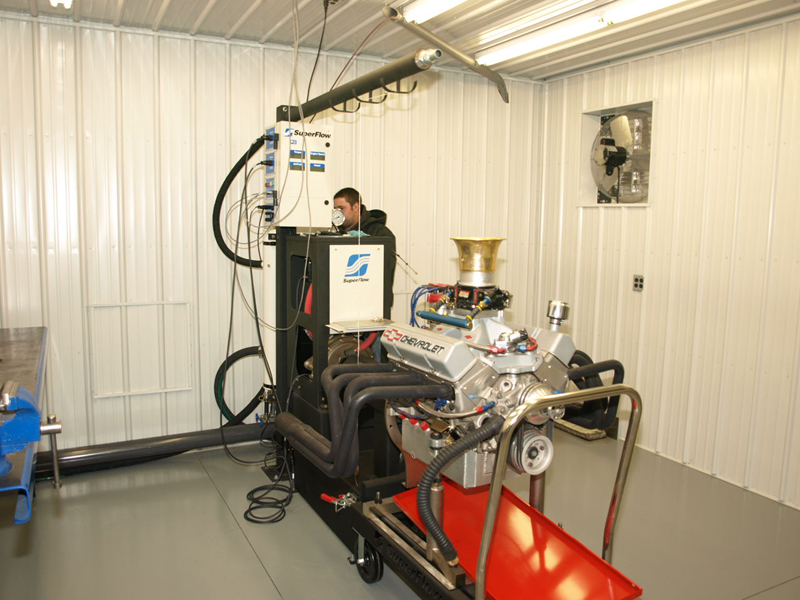

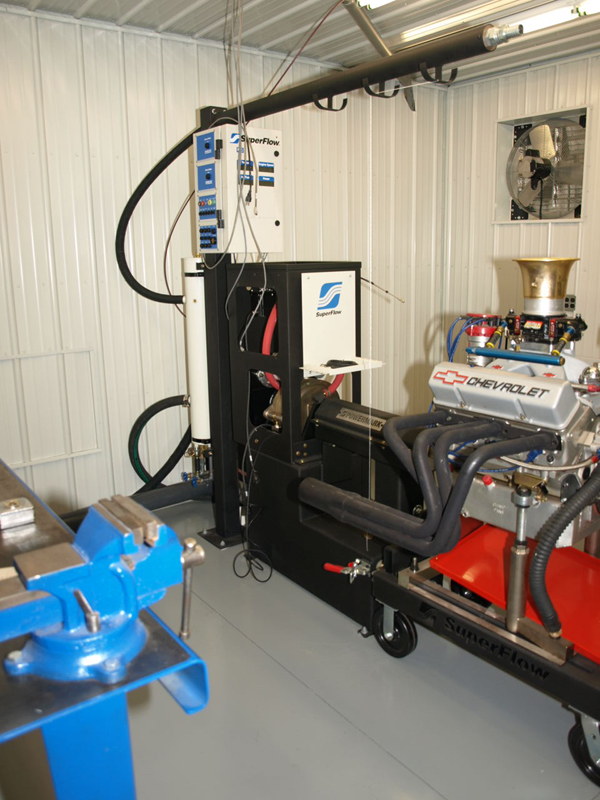

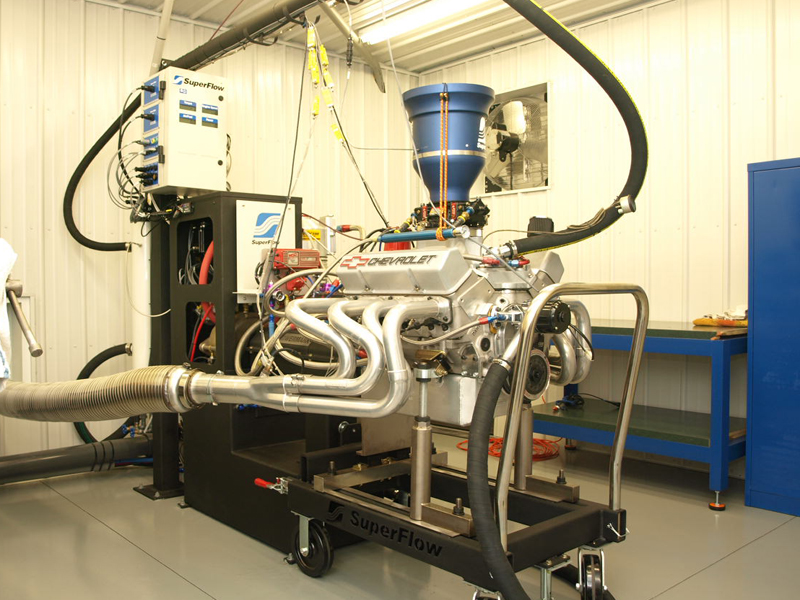

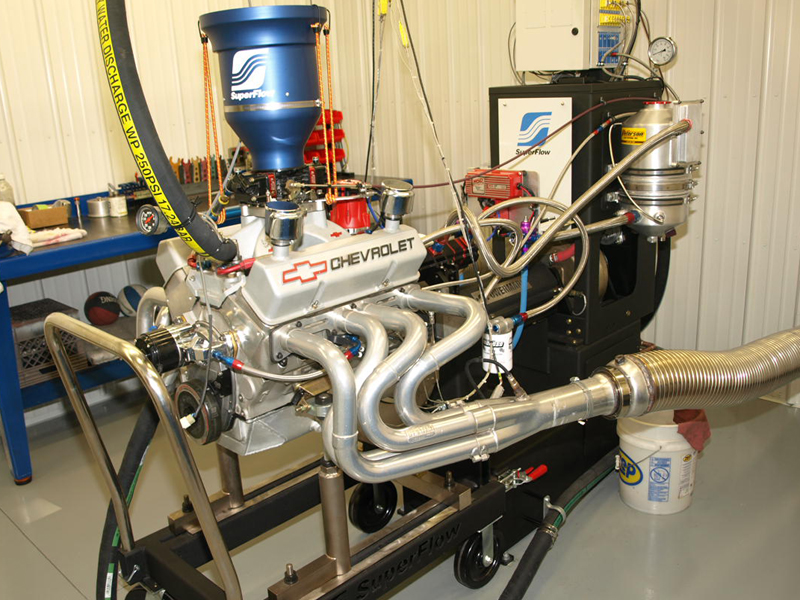

| Hooked up and several runs made. | |
 |
 |

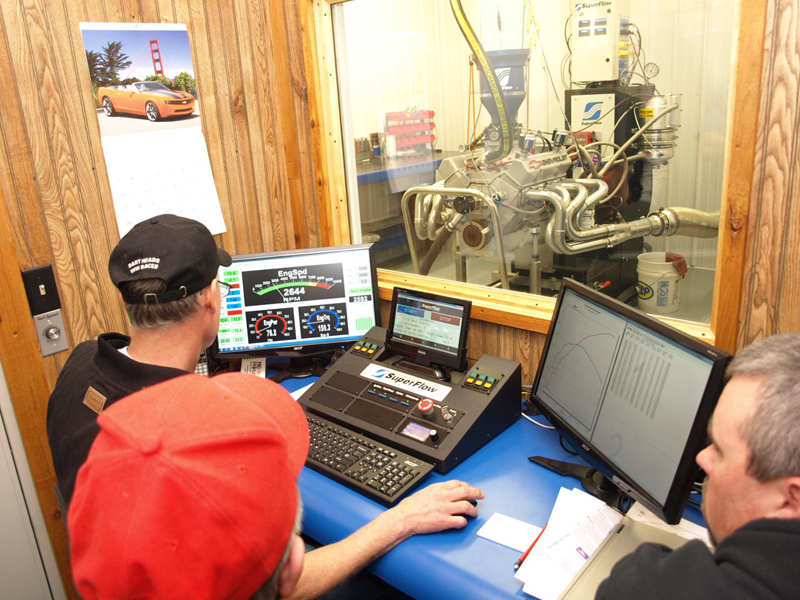

| View from the control room on training day 1. |
